IS 2062 Prime Certified
Grade E250 / E350 with genuine Mill Test Certificates (EN 10204 3.1).

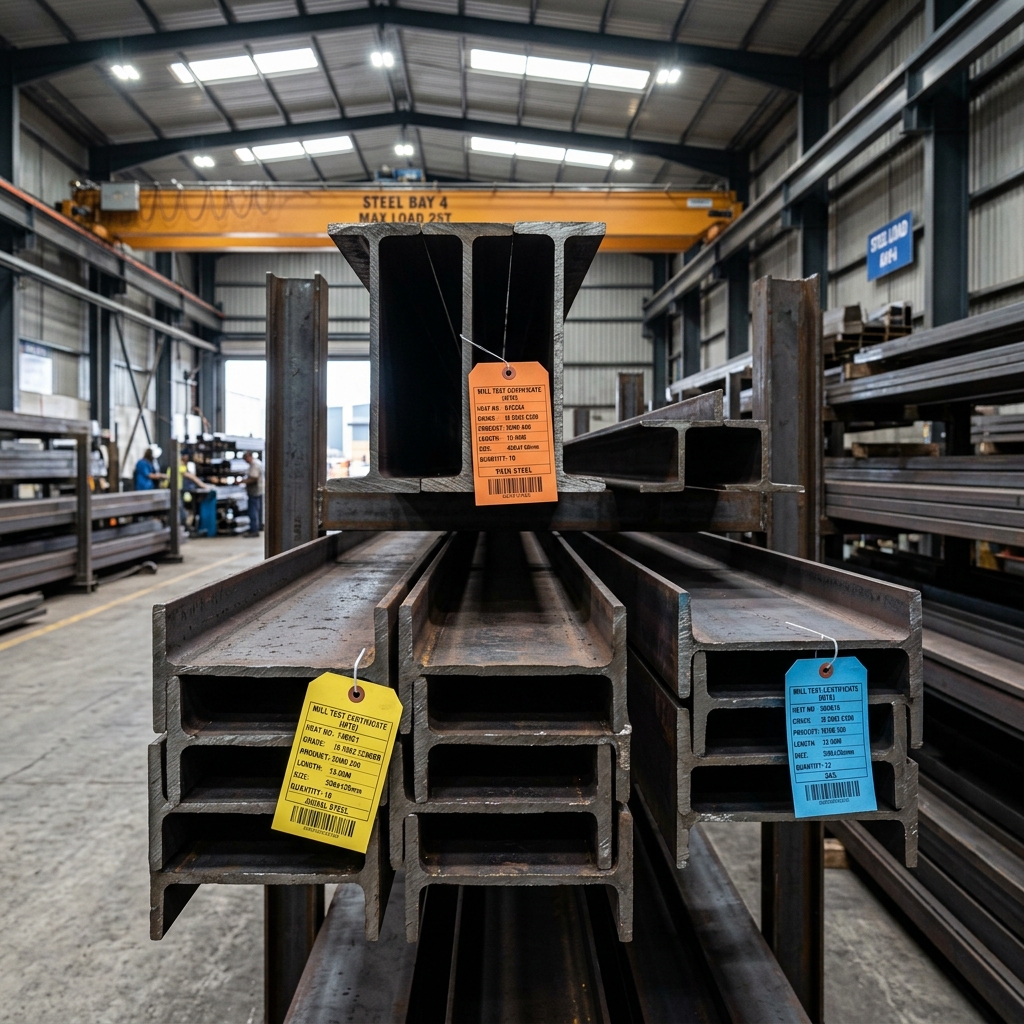

ISMB 100 to 600 Ready Stock

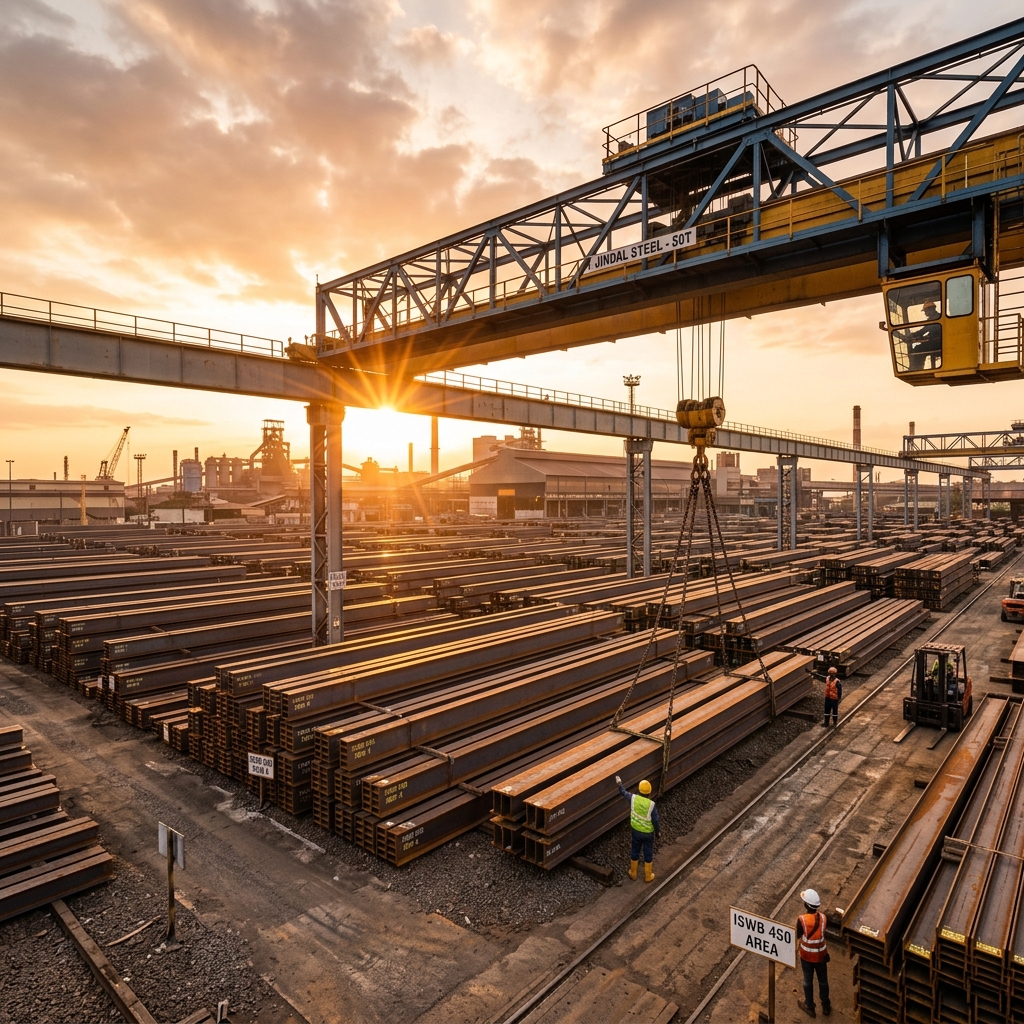

Massive yard inventory of ISMB, ISWB, NPB, and H-Beams in Raipur stockyard.
Cut-to-Length Sawing
Precision automatic band-saw cutting to customized project lengths.
PAN-India Dispatch
Rapid multi-axle freight loading with electronic weighbridge certification.
Interactive MS Beam Weight Calculator
Calculate theoretical beam weights in kilograms & metric tons for standard ISMB, ISWB profiles and custom lengths.
Mild Steel Beams (ISMB / ISWB) Size & Weight Chart
Comprehensive weight chart per meter and standard piece weights (6m, 9m, 12m) conforming to IS 808:1989 & IS 2062 standards.
Structural Mild Steel Beams Specification Chart
IS 808 / IS 2062 Prime| Designation | Dimensions (D × B × tw × tf) | Weight (Kg / m) | Std. 6m Weight | Std. 9m Weight | Std. 12m Weight | Standard Grade | Typical Applications | Instant Quote |
|---|---|---|---|---|---|---|---|---|
| ISMB 100 | 100 × 50 × 4.7 × 7.0 mm | 11.50 kg | 69.00 kg | 103.50 kg | 138.00 kg | IS 2062 E250 / E350 | Light Structural Framing, Racks, Lintels, Solar Ground Mounts | |
| ISMB 125 | 125 × 70 × 5.0 × 8.0 mm | 13.30 kg | 79.80 kg | 119.70 kg | 159.60 kg | IS 2062 E250 / E350 | Shed Purlins, Mezzanine Secondary Beams, Machinery Skids | |
| ISMB 150 | 150 × 75 × 5.0 × 8.0 mm | 15.00 kg | 90.00 kg | 135.00 kg | 180.00 kg | IS 2062 E250 / E350 | Industrial Shed Columns, Floor Joists, Vehicle Chassis Framing | |
| ISMB 175 | 175 × 85 × 5.8 × 9.0 mm | 19.30 kg | 115.80 kg | 173.70 kg | 231.60 kg | IS 2062 E250 / E350 | Warehouse Rafters, Conveyor Supports, Pipe Rack Stanchions | |
| ISMB 200 | 200 × 100 × 5.7 × 10.0 mm | 25.40 kg | 152.40 kg | 228.60 kg | 304.80 kg | IS 2062 E250 / E350 | PEB Building Columns, Crane Runways, Bridge Cross Girders | |
| ISMB 225 | 225 × 110 × 6.5 × 11.8 mm | 31.10 kg | 186.60 kg | 279.90 kg | 373.20 kg | IS 2062 E250 / E350 | Heavy Industrial Floors, Equipment Beds, Foundation Grillage | |
| ISMB 250 | 250 × 125 × 6.9 × 12.5 mm | 37.30 kg | 223.80 kg | 335.70 kg | 447.60 kg | IS 2062 E250 / E350 | Commercial Multi-Storey Columns, Main Girders, Mining Skids | |
| ISMB 300 | 300 × 140 × 7.5 × 12.4 mm | 44.20 kg | 265.20 kg | 397.80 kg | 530.40 kg | IS 2062 E250 / E350 | Heavy Crane Gantries, Railway Spans, Power Plant Bunkers | |
| ISMB 350 | 350 × 140 × 8.1 × 14.2 mm | 52.40 kg | 314.40 kg | 471.60 kg | 628.80 kg | IS 2062 E250 / E350 | Primary Support Beams, Heavy Overhead Gantries, Steel Silos | |
| ISMB 400 | 400 × 140 × 8.9 × 16.0 mm | 61.60 kg | 369.60 kg | 554.40 kg | 739.20 kg | IS 2062 E250 / E350 | Road Overbridges (ROB), High-Capacity Crane Columns, Steel Mills | |
| ISMB 450 | 450 × 150 × 9.4 × 17.4 mm | 72.40 kg | 434.40 kg | 651.60 kg | 868.80 kg | IS 2062 E250 / E350 | Hydro Penstock Girders, Thermal Power Structures, Bridge Trusses | |
| ISMB 500 | 500 × 180 × 10.2 × 17.2 mm | 86.90 kg | 521.40 kg | 782.10 kg | 1,042.80 kg | IS 2062 E250 / E350 / UT | Heavy Industrial Superstructures, Blast Furnace Cast Houses | |
| ISMB 550 | 550 × 190 × 11.2 × 19.3 mm | 103.70 kg | 622.20 kg | 933.30 kg | 1,244.40 kg | IS 2062 E250 / E350 / UT | Heavy Port Cranes, Shipyard Gantry Girders, Large Flyover Spans | |
| ISMB 600 | 600 × 210 × 12.0 × 20.8 mm | 122.60 kg | 735.60 kg | 1,103.40 kg | 1,471.20 kg | IS 2062 E250 / E350 / UT | Major Highway Bridges, Mega PEB Span Girders, Heavy Offshore Decks | |
| ISWB 150 (Wide Flange) | 150 × 100 × 5.4 × 7.0 mm | 17.00 kg | 102.00 kg | 153.00 kg | 204.00 kg | IS 2062 E250 / E350 | High Bending Capacity Columns, PEB Mezzanine Support Framing | |
| ISWB 200 (Wide Flange) | 200 × 140 × 6.1 × 9.0 mm | 28.80 kg | 172.80 kg | 259.20 kg | 345.60 kg | IS 2062 E250 / E350 | Heavy Stanchions, Multi-Bay Warehouse Rafters, Tower Bases | |
| ISWB 250 (Wide Flange) | 250 × 200 × 6.7 × 9.0 mm | 40.90 kg | 245.40 kg | 368.10 kg | 490.80 kg | IS 2062 E250 / E350 | Heavy Axial Load Columns, Industrial Platform Sub-structures | |
| ISWB 300 (Wide Flange) | 300 × 200 × 7.4 × 10.0 mm | 48.10 kg | 288.60 kg | 432.90 kg | 577.20 kg | IS 2062 E250 / E350 | Steel Plant Transfer Tables, Heavy Machinery Foundation Frames | |
| ISWB 400 (Wide Flange) | 400 × 200 × 8.6 × 13.0 mm | 66.70 kg | 400.20 kg | 600.30 kg | 800.40 kg | IS 2062 E250 / E350 | High-Rise Steel Core Columns, Heavy Industrial Portal Frames | |
| ISWB 600 (Wide Flange) | 600 × 250 × 11.8 × 21.3 mm | 133.70 kg | 802.20 kg | 1,203.30 kg | 1,604.40 kg | IS 2062 E250 / E350 / UT | Long-Span Rail Bridges, Heavy Flyover Spans, Marine Jetty Pillars | |
| NPB / WPB (Parallel Flange) | 100mm to 900mm Custom Profiles | 55.80 kg | 334.80 kg | 502.20 kg | 669.60 kg | IS 2062 E250 / E350 / ASTM A992 | High-Tech PEB Infrastructure, Modern Commercial Towers, Airports |
Comprehensive Engineering Guide to Mild Steel Beams
Mild Steel Beams (MS Beams), commonly referred to as Structural I-Beams, Joists, and H-Beams, are prime structural steel profiles engineered with an optimized cross-section consisting of two parallel horizontal flanges connected by a central vertical web. This structural geometry delivers an exceptional moment of inertia (second moment of area) along the major axis, enabling high load-carrying capacity while minimizing dead weight in civil and structural engineering projects.
At Mildsteelbeam.com, we are premier stockists, suppliers, and distributors of prime IS 2062 Grade E250 (Quality A/BR/BO) and Grade E350 (High Tensile) Mild Steel Beams manufactured under strict adherence to IS 808:1989 dimensions and IS 1852 rolling tolerances. Available from ISMB 100 up to heavy structural ISMB 600 and Wide Flange (ISWB/NPB) sections, every consignment is accompanied by 100% verified Mill Test Certificates (EN 10204 Type 3.1).
Pre-Engineered Buildings & Industrial Sheds
Fabrication of primary portal frame rafters, roof trusses, crane runway girders, mezzanine floor joists, and heavy column stanchions.
Bridges, Flyovers & Highway Infrastructure
High-tensile IS 2062 E350 I-Beams used as composite deck support girders, road overbridge (ROB) spans, and railway cross girders.
Heavy Crane Gantries & Overhead Rails
Heavy ISMB 300 to ISMB 600 sections engineered for industrial EOT crane runway beams, monorail hoists, and gantry crane tracks.
Multi-Storey Commercial & Industrial Towers
Axial load-bearing Wide Flange (ISWB) and Universal Beams for power plants, petrochemical refineries, and cement silos.
Mild Steel Beam Theoretical Weight Calculation Formula
The theoretical weight of Mild Steel Beams is standardized by the Bureau of Indian Standards under IS 808:1989 based on sectional dimensions and the standard density of structural mild steel (7,850 kg/m³).
Practical Example: To calculate the consignment weight of 20 pieces of standard 12-meter long ISMB 250 beams (rated at 37.30 kg/m):
Single Beam Weight = 37.30 kg/m × 12 m = 447.60 kg
Total Consignment Weight = 447.60 kg × 20 Pcs = 8,952.00 kg (8.95 Metric Tons)
For commercial billing and dispatch, all consignments leaving our Raipur central stockyard are weighed on computerized electronic weighbridges to ensure 100% transparent and certified invoicing.
Frequently Asked Questions
Key technical, design, and commercial answers regarding Mild Steel Beams, ISMB specifications & order logistics.
ISMB (Indian Standard Medium Weight Beam) has tapered inner flange surfaces and narrower flange widths, making it highly effective for bending loads such as roof rafters and floor beams. ISWB (Indian Standard Wide Flange Beam) features broader, flatter flanges with higher lateral stiffness, making it the preferred choice for heavy vertical columns, axial load-bearing structures, and high-capacity gantry foundations.
We supply MS Beams conforming to IS 2062 Grade E250 (Quality A, BR, BO) with minimum yield strength of 250 MPa, IS 2062 Grade E350 (High Tensile) with minimum yield strength of 350 MPa, ASTM A36, and ASTM A992 standards.
Our standard ready stock lengths are 6.0 Meters, 9.0 Meters, 10.0 Meters, and 12.0 Meters. We also provide custom precision band-saw cutting to supply exact required lengths directly to your fabrication drawing specifications, minimizing site scrap.
Yes, all prime structural shipments are accompanied by genuine EN 10204 Type 3.1 Mill Test Certificates (MTC) verifying cast heat numbers, chemical composition (C, Mn, Si, S, P), and mechanical properties (Yield Strength, Tensile Strength, Elongation, and Charpy Impact values where applicable).
Yes, for critical highway bridge girders, high-load crane gantries, and power plant infrastructure, we supply 100% Ultrasonically Tested (UT) beams in compliance with IS 4225 and ASTM specifications.
You can directly call our sales hotline at +91 9009272007 / 0771-4007433, submit an online quotation inquiry through this website, or email your Bill of Materials (BOM) to jmdtradingco.99@gmail.com for an immediate competitive rate sheet and logistics quote.
